What injection mould plate contamination costs in production
Contamination on mould surfaces affects cycle time, reject rate, and cleaning frequency. As release agent residue and polymer deposits build, surface detail degrades, part release becomes inconsistent, and vent blockages increase cycle pressure requirements, all before the mould is ever removed for maintenance.
- ✓ Release agent buildup reducing surface detail quality and increasing part defect rates
- ✓ Polymer and rubber deposit accumulation causing flash and dimensional inconsistency
- ✓ Vent blockage from carbon and contamination increasing cycle pressure and extending cycle times
- ✓ Mould removal, transport, and chemical cleaning consuming production hours per maintenance event
- ✓ Chemical residue on mould surfaces requiring drying time before production restart
- ✓ Mould surface damage from abrasive cleaning methods accelerating wear and reducing tool life
Why conventional injection mould plate cleaning is expensive
The standard mould cleaning process, removal from press, manual scrubbing or chemical treatment, rinsing, drying, reinstallation, and trial run, takes production equipment offline for hours. For high-cycle production environments running multiple moulds, the cumulative downtime from planned and reactive mould cleaning events is a significant operational cost.
Why dry ice blasting works for in-situ mould cleaning
Dry ice blasting removes mould contamination through thermal shock and sublimation. Solid CO₂ pellets impact the contaminated surface at -78.5°C, rapidly cooling the contamination layer and creating differential thermal contraction that fractures and releases the deposit. The CO₂ then sublimates, converting to gas, providing a micro-expansion effect that removes loosened contamination without abrasive contact with the mould surface.
The process leaves no secondary cleaning media. Only the removed contamination remains to be extracted. Polished cavity surfaces, precision geometry, and textured surfaces are not contacted by abrasive particles at any stage.
What in-situ mould cleaning changes in practice

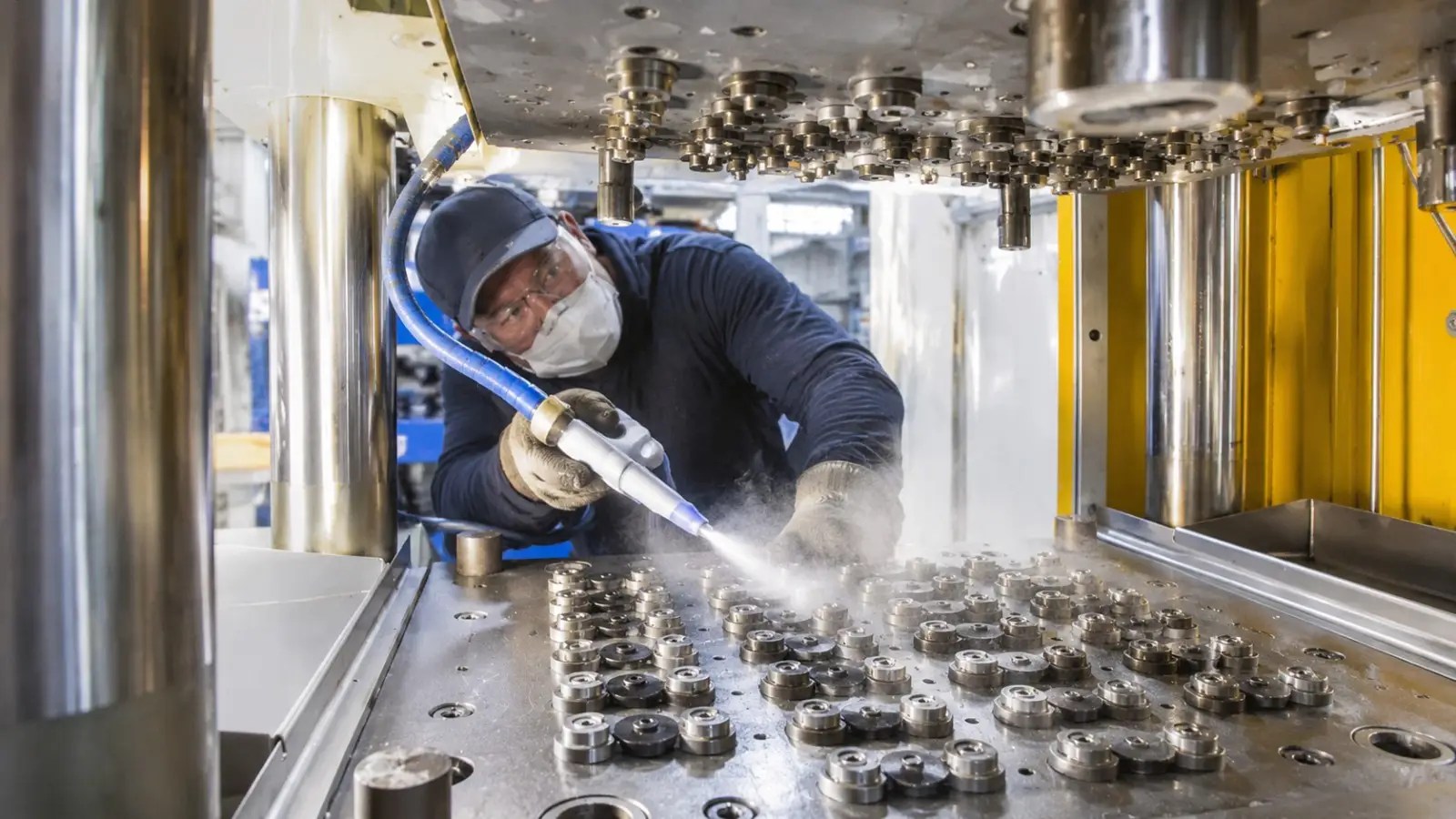

- ✓ Mould cleaned in the press, no removal, no transport, no reinstallation sequence
- ✓ No chemical agents, no dwell time, no rinsing, no drying before production restart
- ✓ Zero secondary waste from cleaning media, only the removed contamination to extract
- ✓ Non-abrasive on polished cavity surfaces, textured surfaces, and precision mould geometry
- ✓ Effective on release agent residue, rubber flash, polymer deposits, and carbon contamination
- ✓ Faster return to production compared with removal-based cleaning methods
Mould cleaning applications
In-situ injection mould plate cleaning with dry ice blasting is applicable across production mould types where contamination accumulates during normal production cycles. Effective on both hot and ambient temperature moulds, and on mould materials including hardened steel, aluminium, and coated tool surfaces.
- ✓ Injection moulding: release agent residue, polymer deposits, and carbon from cavities and vents
- ✓ Rubber moulding: flash removal and release agent cleaning from rubber mould surfaces
- ✓ Compression moulding: contamination removal from mould faces and cavity detail
- ✓ Blow moulding: cleaning of blow mould cavities, parting lines, and vent systems
- ✓ Foam moulding: removal of foam residue and release agent from mould surfaces
- ✓ Die casting: release agent and thermal residue removal from die surfaces between production runs
Mould vent cleaning and parting line maintenance
Blocked vents increase cavity pressure, extend cycle time, cause burn marks on parts, and accelerate mould wear. Dry ice blasting delivers cleaning media directly into vent channels and parting line geometry, removing carbon, polymer, and release agent deposits without contact damage to the vent structure. Regular parting line maintenance keeps split line geometry clean, reducing flash generation and maintaining part dimensional consistency.
How MISERV approaches insitu injection mould plate cleaning
Every mould presents different contamination patterns, geometry constraints, and surface sensitivity requirements. Before cleaning, we assess:
✓ Contamination type and location
Release agent, polymer, rubber flash, carbon, type and location across cavities, vents, and parting lines.
✓ Mould material and surface finish
Tool steel, aluminium, coated surfaces, polished cavities, blast parameters set accordingly.
✓ Mould temperature at cleaning
Hot or ambient cleaning planned based on production schedule and thermal state.
✓ In-situ access constraints
Press clearance, mould orientation, and component geometry assessed before deployment.
✓ Production schedule integration
Cleaning planned within maintenance windows to minimise production interruption.
✓ Contamination extraction method
Secondary waste extraction method specified for each application.
Conventional vs in-situ injection mould plate cleaning with dry ice
| Conventional mould cleaning | In-situ mould cleaning with dry ice |
|---|---|
| Mould removed from press for cleaning | Mould cleaned in the press, no removal required |
| Chemical agents require dwell and drying time | No chemicals, production restart immediately after cleaning |
| Abrasive methods risk cavity surface damage | Non-abrasive, polished and precision surfaces protected |
| Secondary waste from solvents and cleaning media | Zero secondary waste from CO₂ cleaning media |
| Hours of downtime per cleaning event | Significantly reduced production interruption time |
| Inconsistent results across complex geometry | Consistent cleaning across cavity detail, vents, and parting lines |
Frequently asked questions
What is in-situ mould cleaning and how does it work?
Can dry ice blasting clean polished mould surfaces without damage?
Which contamination types does dry ice mould cleaning remove?
Does MISERV provide mould cleaning services across Malta and Italy?
How long does in-situ mould cleaning take vs conventional methods?
If mould contamination is increasing cycle times, raising reject rates, or requiring production interruptions for cleaning, the mould cleaning method may need to change.
