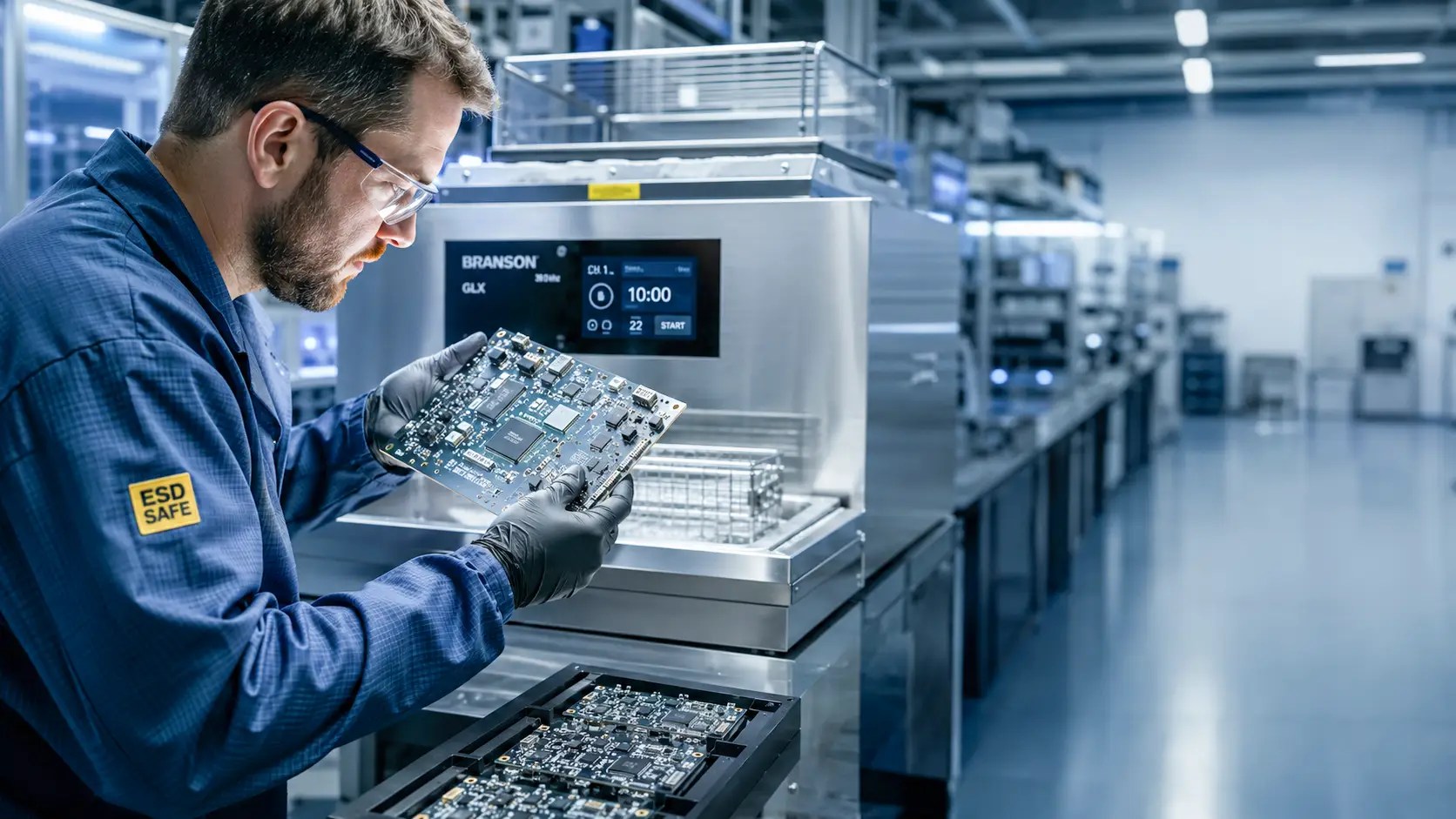

ELECTRONICS CLEANING SERVICES AND PCB ULTRASONIC CLEANING
Electronics cleaning services for precision assembly environments
Not every electronics failure begins with a defective component. Many begin with contamination that survived the cleaning process.
Flux residue trapped under a BGA. Ionic contamination inside plated through-holes. Process residue in connector housings. The board passes electrical testing. The assembly passes visual inspection. The failure appears weeks later under operating stress or humidity cycling.
Electronics cleaning services need to reach the contamination that inspection cannot detect, in the geometry that conventional methods cannot consistently access.
Spray cleaning performs well on accessible surfaces. The challenge begins where directional spray access ends: under low-clearance BGAs, inside plated through-holes, within connector housings, beneath densely populated SMT areas.
28kHz
Ultrasonic Cavitation
BGA & THT
Under-Component Access
ESD-Safe
Throughout Process
Malta & Italy
Coverage
Contamination that survives the cleaning process creates specific categories of reliability risk:
- ✓Ionic contamination from flux activators promotes electrochemical migration under humidity, creating leakage currents and dendritic growth between conductors
- ✓Flux residue under BGAs traps moisture, increasing the risk of delamination and solder joint degradation over thermal cycling
- ✓Process residue in through-holes affects conformal coating adhesion and creates localised corrosion points
- ✓Contamination on fine-pitch contact surfaces increases contact resistance and accelerates connector wear
- ✓Aperture blockage from stencil contamination introduces solder paste deposition defects across production batches
What invisible contamination actually costs
A field return costs significantly more than a production reject. The contamination driving that return was often present at point of manufacture and missed not because it was undetectable, but because the PCB cleaning process used was not designed to reach it.
Ultrasonic cleaning for electronics reaches contamination that directional spray methods cannot. Cavitation at 28kHz occurs everywhere the cleaning liquid is present: under components, inside through-holes, within connector housings, in concealed solder joints. The cleaning action does not depend on line-of-sight access to the contaminated surface.
We provide PCB ultrasonic cleaning using controlled 28kHz cavitation with chemistry selected according to the flux type, contamination profile, and assembly sensitivity. The process removes flux residue, ionic contamination, solder paste residue, and process oils from surfaces that spray cleaning addresses inconsistently or not at all.
What PCB ultrasonic cleaning addresses
- ✓Flux residue removal from under BGAs and fine-pitch devices
- ✓Through-hole cleaning of plated bores and barrel surfaces
- ✓Ionic contamination removal from populated assemblies
- ✓Solder paste residue from concealed SMT areas
- ✓Process oils and handling contamination from contact surfaces
BGA cleaning and through-hole cleaning are the two most challenging contamination scenarios in modern electronics manufacturing. BGAs sit at low clearance above the board surface, trapping flux activators beneath the component during reflow. Ultrasonic cavitation acts within that gap, removing residue that spray systems cannot penetrate.
Through-hole cleaning addresses flux, solder, and ionic residue deeper in the barrel that directional spray frequently leaves behind. For electronics assemblies where BGA cleaning and through-hole cleaning are quality requirements rather than best-effort targets, the geometry of ultrasonic cleaning for electronics is the appropriate method.
BGA cleaning
28kHz cavitation acts within the low-clearance gap beneath BGA components, removing flux activators that spray systems cannot penetrate
Through-hole cleaning
Cavitation reaches flux, solder, and ionic residue deep inside plated through-hole barrels regardless of bore diameter
Fine-pitch assemblies
Consistent cleaning action across densely populated SMT areas without directional spray limitations
Connector assemblies
Internal connector housing cleaning that surface-directed methods cannot reach consistently
SMT stencil cleaning directly affects solder paste deposition quality. Aperture blockage and residue buildup increase the risk of bridges, insufficients, and paste deposition inconsistency. We provide SMT stencil cleaning using ultrasonic processes that remove solder paste residue from aperture walls and stencil undersides without the manual scrubbing that introduces inconsistency and accelerates stencil wear.
We also provide electronics cleaning services for production tooling including:
- ✓Wave solder pallets and selective solder nozzles
- ✓Squeegees and print tooling components
- ✓Fixture components that accumulate flux, solder, and process residue during normal production
- ✓Precision tooling requiring consistent cleaning without manual technique variation
Ultrasonic cleaning for electronics is conducted with ESD-safe handling procedures, grounded equipment, controlled rinsing systems, and appropriate handling throughout the cleaning and drying cycle. For electronics manufacturers where ESD-safe cleaning is a process requirement, MISERV maintains the ESD controls appropriate to the assembly type throughout the entire cleaning workflow.
Conformal coating removal for electronics rework
Rework processes frequently require selective conformal coating removal before components can be replaced or solder joints reworked. We provide conformal coating removal using ultrasonic processes aligned to the coating chemistry and rework scope. The process removes coating from the targeted area without the manual technique variability that scraping and solvent brushing introduce.
Every electronic assembly behaves differently during electronic component cleaning. Flux chemistry, component density, board architecture, coating systems, and contamination levels all influence the process required. Before recommending any electronics cleaning services approach, we evaluate:
✓Assembly type and component density
✓Flux chemistry and contamination profile
✓Component sensitivity and ESD requirements
✓Cleanliness requirements and IPC verification standards
✓Conformal coating removal scope
✓Production volume and turnaround requirements
The result is an electronics cleaning process aligned to the specific quality and operational requirements of that assembly environment. We test before recommending. We validate before deploying.
MISERV provides electronics cleaning services for electronics manufacturers, EMS providers, precision assembly environments, and electronics rework operations across Malta and Italy.
| Conventional spray cleaning | Ultrasonic electronics cleaning services |
|---|---|
| Limited to line-of-sight surface access | Cavitation acts everywhere the liquid reaches |
| Under-BGA and through-hole access inconsistent | Consistent access under components and inside bores |
| Manual handling increases ESD exposure risk | ESD-safe handling throughout process |
| Batch results vary by operator technique | Repeatable, operator-independent batch cleaning |
| Ionic contamination remains in concealed areas | Ionic contamination removed from concealed geometry |
| No cleanliness verification standard built in | Process aligned to ROSE testing and IPC verification |
| Conformal coating removal requires manual work | Ultrasonic removal aligned to coating chemistry |
The operational difference is not in how the surface appears after cleaning. It is in whether the contamination beneath and inside the assembly has been removed, and whether that removal can be verified.
Electronics cleaning services cover the removal of flux residue, ionic contamination, solder paste residue, process oils, and particulate from PCBs, electronic assemblies, production tooling, and precision components. MISERV provides electronics cleaning services using PCB ultrasonic cleaning with chemistry selected according to the flux type, assembly configuration, and cleanliness requirement. Services cover populated PCBs, BGA assemblies, through-hole boards, SMT stencils, connector assemblies, and precision components requiring conformal coating removal or rework preparation across Malta and Italy.
Spray cleaning relies on directional liquid pressure and cannot consistently penetrate the gap beneath low-clearance BGAs or reach ionic contamination deep inside plated through-holes. Ultrasonic cleaning for electronics uses 28kHz cavitation where microscopic bubbles form and collapse wherever the liquid is present. BGA cleaning and through-hole cleaning performed ultrasonically reach geometry that spray access cannot, removing the residue that creates long-term reliability risk.
Flux residue removal eliminates post-soldering flux activator residues that promote electrochemical migration under humidity, create leakage paths between conductors, and accelerate solder joint degradation over thermal cycling. PCB ultrasonic cleaning removes flux residue from accessible surfaces and from concealed areas including BGA underside geometry, through-hole barrels, and fine-pitch joints where spray systems leave residue behind. For manufacturers managing IPC cleanliness standards, flux residue removal is a reliability control measure, not an optional finishing step.
Yes. PCB ultrasonic cleaning parameters including frequency, temperature, chemistry, and cycle time are evaluated according to the assembly type and component sensitivity before the process is applied. ESD-safe cleaning procedures are maintained throughout handling, cleaning, rinsing, and post-clean inspection stages. Components with known ultrasonic sensitivity are identified during pre-process evaluation and handled accordingly.
Yes. MISERV provides PCB cleaning processes with cleanliness verification including ROSE testing for ionic contamination measurement, ionic contamination testing aligned to IPC cleaning standards, UV residue inspection, and documentation suitable for quality records. For manufacturers managing cleanliness acceptance criteria or investigating field failures with a suspected contamination root cause, contamination verification is available as part of the electronics cleaning services process.
If flux residue, ionic contamination, or inconsistent cleaning results are creating reliability risk in your assemblies, the cleaning process may need to change.
Contact us to assess the right electronics cleaning services approach for your production environment.
